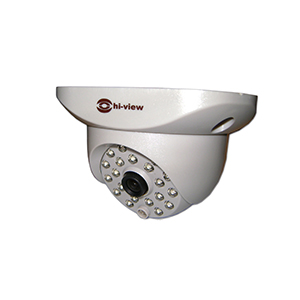

Model: HL-11
» Product: Hiview
» Category: Camera
» Series: ÍÔ¹¿Òàô (infrared)
Feature:
- 1/3" Standard CCD
- ¤ÇÒÁÅÐàÍÕ´ 420 TV Line
- ¤èÒ¡ÒÃÃѺÀÒ¾áÁéÁÕáʧ¹éÍ 0.1 Lux/F2.0
- ÍÔ¹¿Òàô 20 ´Ç§
- ÃÐÂÐÍÔ¹¿Òàô 10M 0 Lux iR on
- àŹÊìẺ Fix ¢¹Ò´ 4 MM
- ·¹ÊÑҳú¡Ç¹ä´éÁÒ¡¡ÇèÒ 48dB
- ä¿àÅÕé§ DC 12 V/120mA
- àËÁÒÐÊÓËÃѺ§Ò¹ã¹ÍÒ¤ÒÃ
Specification
Model
HL-11
Image Device
1/3" Standard CCD
Scanning Frequency
NTSC: 15,734KHz(H),60Hz(V); PAL: 15,625KHz(H), 50Hz(V)
Scanning System
NTSC: 525 line 2:1 interlace; PLA: 625 lines 2:1 interlace
Effective Pixels
NTSC: 512(H) x 492(V); PAL:512(H) x 582(V)
Electronic Shutter
NTSC: 1/60 ~ 1/100,000 sec(Auto); PAL: 1/50 ~ 1/100,000 sec(Auto)
Horizontal
420 TV Lines
White-Balance
Auto White Balance(2500°K ~ 9500°K)
Synchronizing System
Internal
Sensitivity
0.1 Lux, 0 Lux at IR On /F2.0
BLC
Auto
Signal to noise
More than 48dB AGC off
AGC
Yes
Gamma Correction
0.45
IR Distance
10 Meters(Max)
IR LED
20 pcs LED
IR Status
Under 1 0 Lux by CDS auto control
IR view angle
View angle: 70° Beam spread: 40°/per LED
IR Wavelength
850nm 25n
LED Life
More than 10,000 hours
Lens
4mm Fixed Lens
Power Consumption
IR on: 500mA., IR off: 70mA -+ 5mA
Power Supply
DC 12 V
Temperature
Operating: -10 to 50°C
Video Output
Composite 1.0 Vp-p at 75Ohm
*·Ò§ºÃÔÉÑ·¢ÍÊǧ¹ÊÔ·¸Ôì㹡ÒûÃѺ»Ãا à»ÅÕè¹á»Å§ á¡éä¢ â´ÂäÁèá¨é§ãËé·ÃÒºÅèǧ˹éÒ.
