สินค้ากล้องวงจรปิด CCTV ยี่ห้อ Hiview

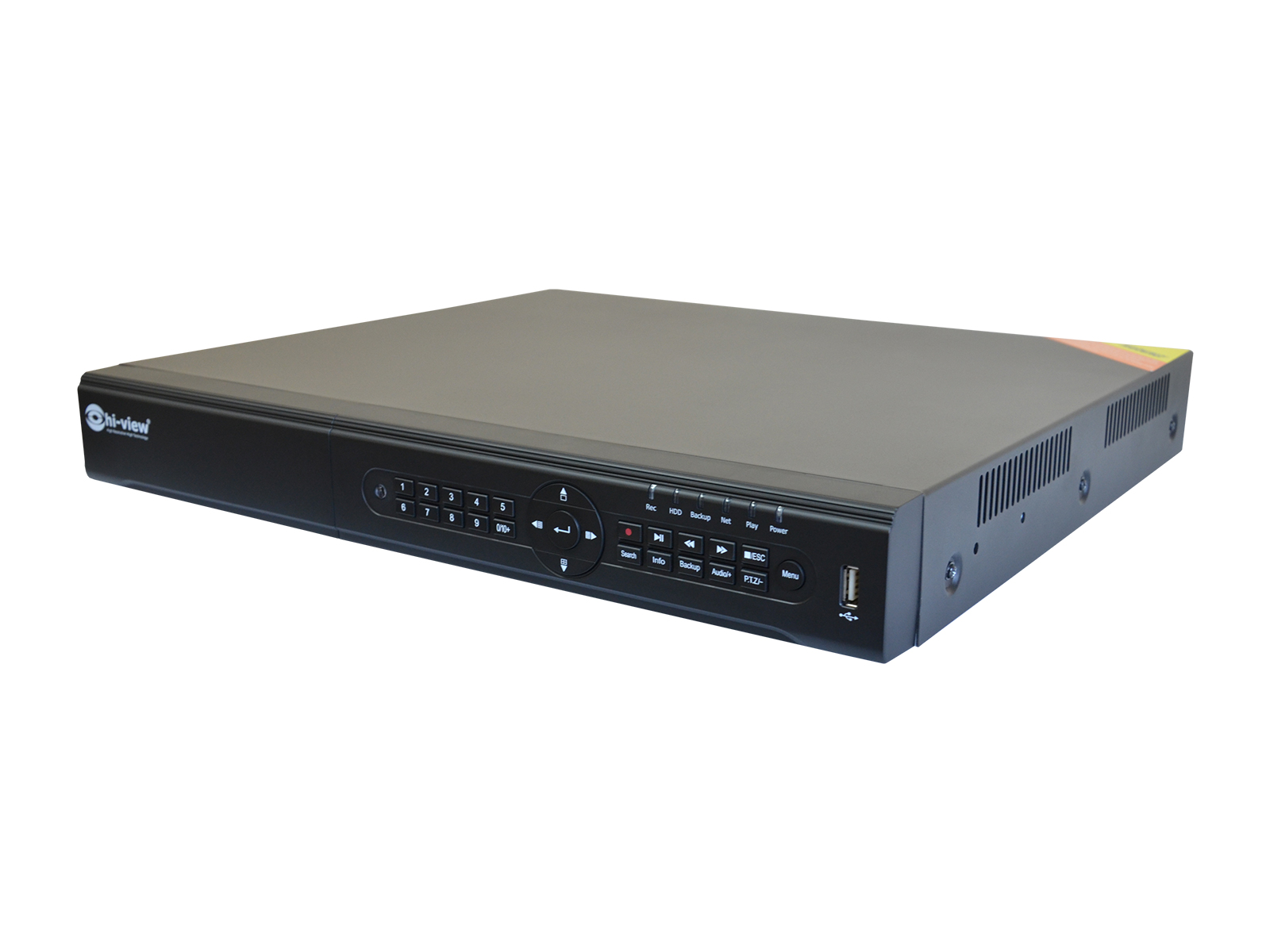

NVR: HP-9516

ทดสอบหน้ารายละเอียดสินค้า

Specification

Model
HP-9516
System
Compression
Standard H.264
CPU
Cotex A9 Dual Core
OS
Embedded Linux
Video
Output
BNC x1
VGA x 1: 1080P(1920x1080)
HDMI x 1: 1080P(1920x1080)
IP Input
1080P
16CH@15fps
8CH@30fps
720P
16CH@30fps
D1
16CH@30fps
Audio
Input
-
Output
RCA x 1
2-way audio
RCA x 1
Record
Resolution
1080P / 720P / D1
frame Rate
1~25fps/CH(PAL), 1~30fps/CH(NTSC)
Bit Rate
2M~12Mbps
Encode
VBR/CBR
Quality
6 Level
Mode
Manual, Timer, Motion, Sensor
File Manager
Lock, unlock, reserving time
Playback
Playback
16CH
Search
Time/Calendar search, event(motion, external alarm)
Smart Search
Apply Different color to display whether a channel in a period of time recording or not.
Function
Play, Pause, FF, FB, Digital zoom
Alarm
Mode
Sensor, Motion, Videp Loss
Input
16CH
Output
1CH
Triggering
Record, PTZ move, alarm out, e-mail, etc
Network
Interface
RJ45 x 1
PoE
RJ45 x 16
Photocal
TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS
Others
18 users online, dual stream
Cell phone
OS
iPhone, Blackberry, Android, Windows phone
Function
Multi-screen surveillance(for certain mode), snapshot, PTZ control, save the device list
Port
HDD
SATA x 2
RS485
RS485 x 1, support PTZ and keyboard
USB
USB2.0, one for mouse, another for USB backup device
Others
Remote Controller
Yes
Power Supply
AC110V / 220V
Dimensions
430mm * 300mm * 55mm (W*D*H)
Working Environment
0~50 ํC, 10% ~ 90% Humidity
