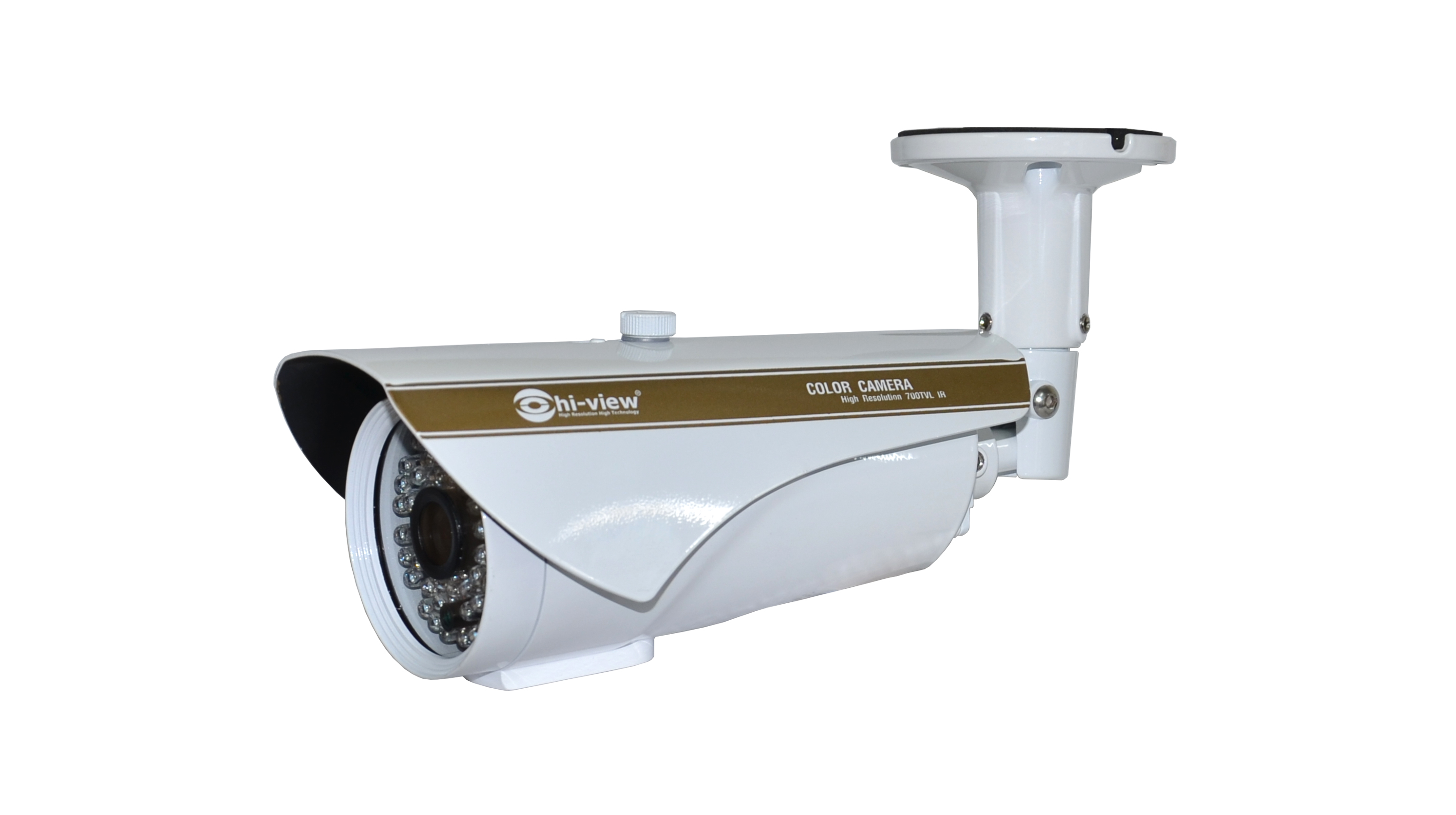

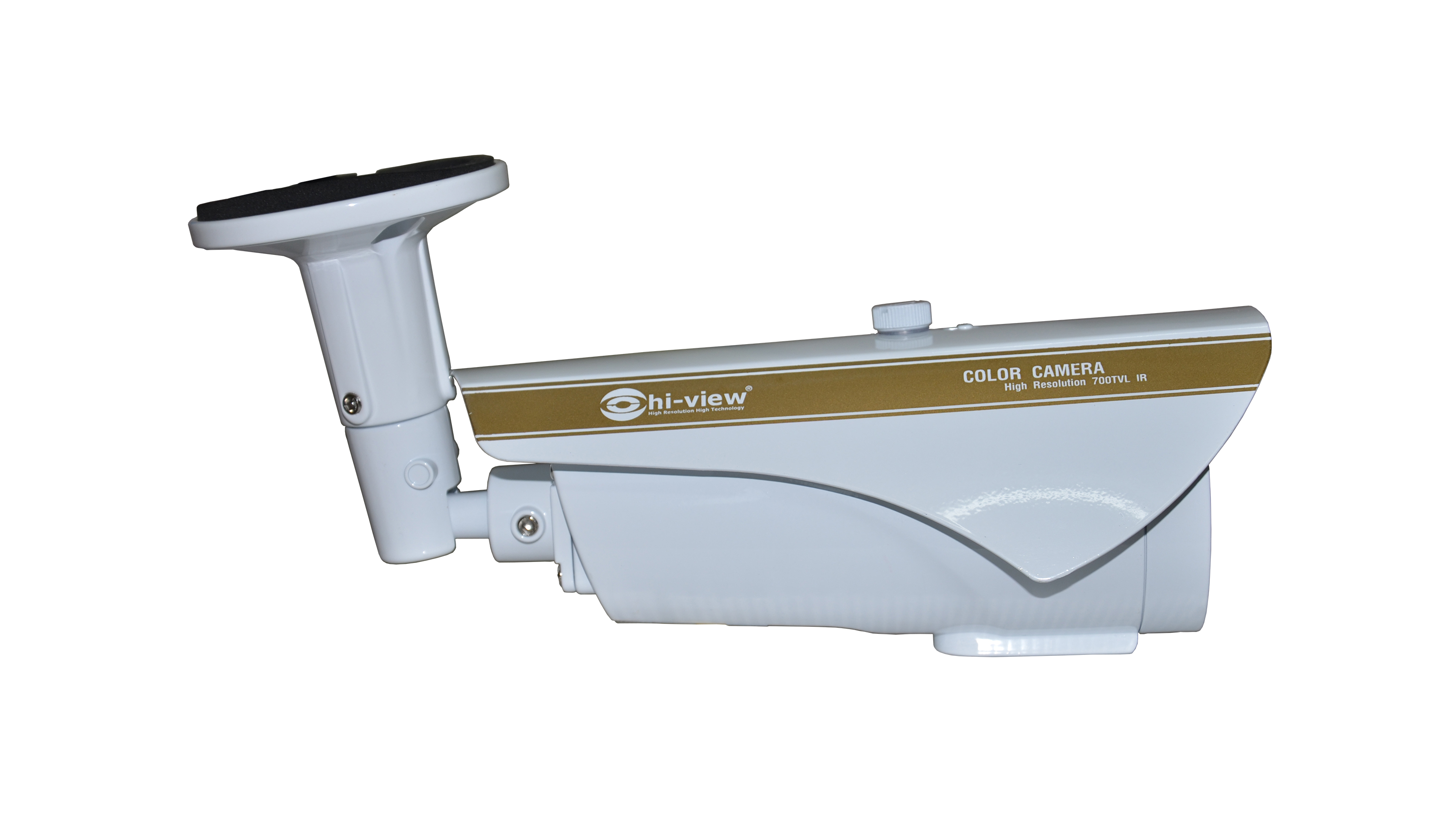

Model: HI-7296
» Product: Hiview
» Category: Camera
» Series: ÍÔ¹¿Òàô(infrared)
Feature:
- 1/4" CMOS(DIS)
- ¤ÇÒÁÅÐàÍÕ´ 700 TV Line
- ¤èÒ¡ÒÃÃѺÀÒ¾áÁéÁÕáʧ¹éÍ 0.01 Lux/IR On
- ÍÔ¹¿Òàô LED 54 ´Ç§
- ÃÐÂÐÍÔ¹¿Òàô 30-40 àÁµÃ
- àŹÊì 3.6
- ÁÒµÃÒ°Ò¹¡Òûéͧ¡Ñ¹ IP66
- ÁÕà·¤â¹âÅÂÕ AWB,BLC,AGC,Day&Night ICR
- ·¹µèÍÊÑҳú¡Ç¹ä´é¶Ö§ 52dB
- áËÅ觨èÒÂä¿ DC 12V
Specification
Model
Hi-7296
Scanning System
PAL / NTSC
Picture element Effective
720(H) x 480(V)
Digital Signal Processing
DIS / DSP
Image Size
1/4" DIS(CMOS)
Vertical Frequency
PAL: 50Hz / NTSC: 60Hz
Synchronizing system
Internal Synchronizing system
Interlace
2:1 Interlace
Horizontal Resolution
700 TV Line
Aperture Correction
H Aperture V Aperture
Video output level
1.0V(p-p) (75Ohms, composite)
Video S/N ratio
More than 52 dB (AGC off)
Minimum illumination
0.01 LUX(F1.20), 0 LUX With IR
White Balance
Auto
Gain Control
Auto
Back Light Compensation
Auto
Gamma
0.45
Auto Exprosure(AE) system
Auto Electronic Iris:1/50(1/60) - 1/100,00 sec
Electronic Iris Range
2 LUX to 100,000 LUX ---(F1.2)
incandescent lighting
2.7 LUX to 130,000 LUX ---(F1.4)
Environmental Conditions
-
Operating Temperature
Temperature: -10'C to +50 'C, Humidity: Within 90% RH
Storage Temperature
Temperature: -20'C to +70 'C, Humidity: Within 70% RH
Lens (mm)
3.6mm
IR LED
54 PCS
Day&Night
ICR
IR Range (m)
30-40M
Bracket
Managed Cable Bracket
IP Rating
IP 66
Power Supply
DC 12V
Color
White
Dimensions (mm)
₵ 50 x 185
Weight (g)
500g
*·Ò§ºÃÔÉÑ·¢ÍÊǧ¹ÊÔ·¸Ôì㹡ÒûÃѺ»Ãا à»ÅÕè¹á»Å§ á¡éä¢ â´ÂäÁèá¨é§ãËé·ÃÒºÅèǧ˹éÒ.
